How the E61 Group Head Works in Espresso Machines

If you’ve pulled espresso on a vintage Italian machine—or even a modern one with retro styling—you’ve likely used an E61 group head. But what makes this nearly 60-year-old design still popular today? It’s not just nostalgia. The E61 delivers consistent thermal performance and a smoother extraction through clever engineering.

The E61 group head remains a favorite among baristas and home users because it combines a thermosyphon heating system and a built-in pre-infusion mechanism—all without digital sensors or complex electronics. These two features alone help maintain stable brewing temperatures and reduce channeling, leading to better espresso.

What Is the E61 Group Head?

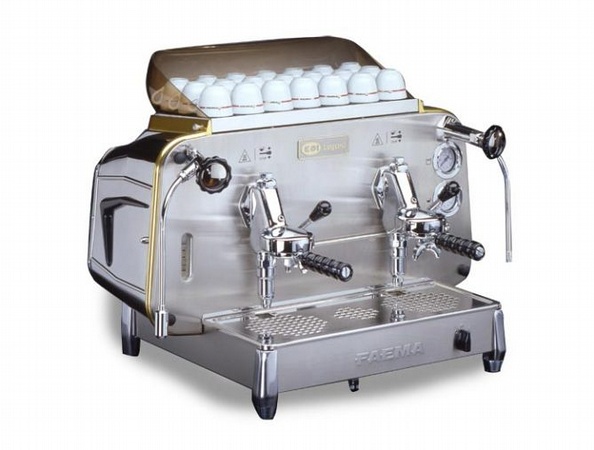

The E61 group head first appeared on the Faema E61 espresso machine in 1961. It’s a mechanically operated group still found on many high-end commercial and home machines today. Its enduring popularity comes from how it solves two critical challenges in espresso brewing: temperature stability and pressure ramp-up.

How the E61 Uses Thermosyphon Heating

Unlike simpler group heads that rely solely on the boiler for heat, the E61 has a dual-tube water system connected to the boiler (or heat exchanger). The upper tube is the inlet, bringing hot water from the boiler into Chamber 1, where it heats the group head. As the water cools slightly, it becomes denser and sinks back down through the lower return tube, flowing back into the boiler. This natural convection loop is called a thermosyphon. It keeps the group head at a stable, brew-friendly temperature without additional pumps or thermostats.

Pre-Infusion: Why the E61 Doesn’t Slam the Coffee

Espresso requires high pressure—typically 8 to 10 bars—but blasting hot water at full pressure right onto the coffee puck can cause uneven extraction. The E61 avoids this with a clever pre-infusion feature built into its hydraulic design. The group includes an expansion chamber (Chamber 4) and a series of narrow, winding channels that restrict water flow. These two elements work together to gradually build pressure. First, water enters at a lower pressure—around 1.5 bars—and slowly fills the expansion chamber. Only once that chamber is full does the pressure rise toward the full brew pressure. This slow ramp-up, known as pre-infusion, allows the coffee bed to stabilize before extraction begins.

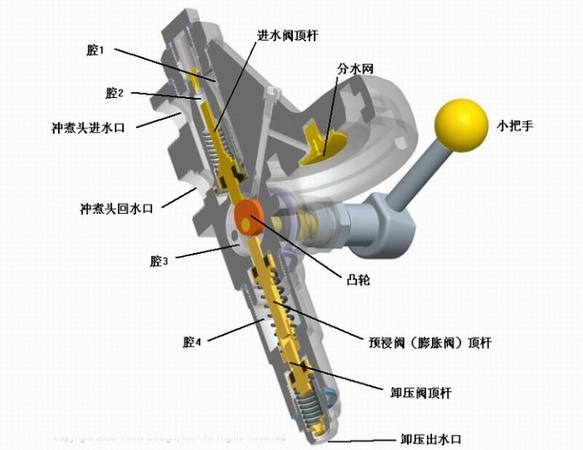

Step-by-Step: How the E61 Group Head Operates

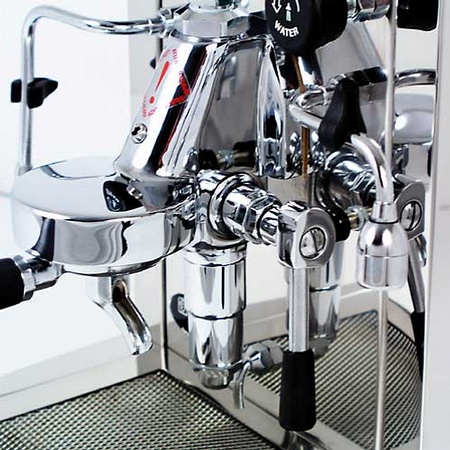

To see the E61 in action, let’s walk through a typical brew cycle using an Isomac machine as an example:

• Closed Position (Idle): When the portafilter handle is down and the machine is at rest, a microswitch is off, the pump is idle, and the inlet valve is closed. Both the pre-infusion valve and a pressure relief valve are held open by cams, allowing any residual pressure to dissipate.

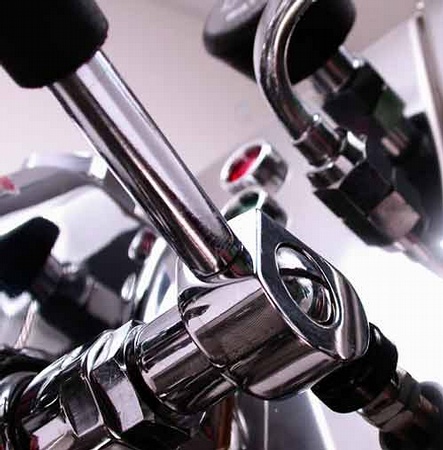

• Starting the Shot: When you lift the handle to a horizontal position, the microswitch activates the pump. The cams now close the pre-infusion and relief valves while opening the inlet valve. Water flows into the group through the open channels and chambers, and pressure begins to build.
• Pre-Infusion Phase: As pressure increases past 1.5 bars, the expansion (pre-infusion) valve opens. Water flows into Chamber 4. Until this chamber fills, the puck experiences gentle pressure around 1.5 bars. Once Chamber 4 is full, pressure continues rising toward the target 8–10 bars for extraction.
• End of the Shot: After brewing, when you lower the handle, the microswitch turns off the pump and the inlet valve closes. The cams then press down on both the pre-infusion and relief valve levers, opening the relief valve. Any pressurized water remaining in the group—from the filter basket to Chamber 3 and Chamber 4—is released through the drain, preventing drips or uneven pressure release.



Frequently Asked Questions

What makes the E61 group head different from modern group heads?

The E61 uses purely mechanical parts—no solenoids, sensors, or digital controls. It relies on a thermosyphon for temperature stability and hydraulic restriction for pre-infusion, achieving consistent results without electronics.

Does the E61 really improve espresso quality?

Yes. Its thermosyphon system maintains a more stable group head temperature than many simpler designs, and its pre-infusion reduces channeling and promotes even extraction, especially beneficial for beginners or those using manual machines.

Why does the E61 use a thermosyphon instead of a pump for heating?

The thermosyphon is a passive system driven by natural convection. Hot water rises into the group, cools, and returns to the boiler. This provides steady heat transfer and eliminates the need for extra energy or complex heating controls at the group level.

How does pre-infusion in the E61 work?

Pre-infusion is achieved through a restriction in water flow and a dedicated expansion chamber (Chamber 4). Pressure builds slowly to around 1.5 bars before increasing to full brew pressure, allowing the coffee puck to stabilize and extract more evenly.

Is the E61 group head still used in modern machines?

Absolutely. Many high-end commercial and home espresso machines still feature the E61 group head due to its reliability, temperature stability, and the high-quality extraction it facilitates.
