Toper TKM-SX 360 Gas Roaster: Specs & Production Capacity

If you’re running a high-volume specialty coffee operation and need consistent output with precise control over roast profiles, finding a commercial roaster that balances batch size, energy efficiency, and versatility is non-negotiable. Many roasters face the challenge of scaling production without sacrificing quality—especially when moving beyond small-batch equipment into industrial capacities. What’s the right machine for 360kg batches, and how does it perform across roast levels?

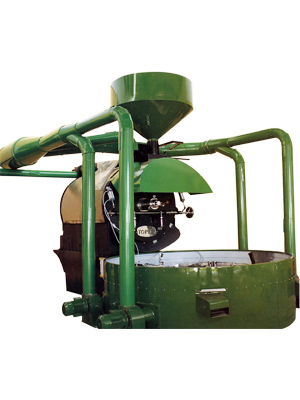

The Toper TKM-SX 360 Gas roaster is built for high-capacity commercial coffee roasting. It processes a single batch of 360kg of green coffee, with roast times ranging from 10 minutes for light roasts to 15 minutes for dark roasts. Production capacity reaches up to 2160kg/hour for light roasts and 1440kg/hour for dark roasts, using a combination of semi-hot air (semi-direct flame) and direct heat methods. The machine is powered by (propane gas), natural gas, or diesel, and supports voltages from 110V to 380V, with a total power draw of 15 kilowatts.

Batch Capacity & Roast Speed

The TKM-SX 360 is engineered for large-scale operations. Each batch holds 360kg of raw coffee beans. Light roasts are typically completed in around 10 minutes, while darker roasts extend to approximately 15 minutes. This range allows roasters to hit a variety of flavor profiles without sacrificing throughput.

Production Throughput by Roast Type

Roast speed translates directly into hourly output. For lighter roasts, the machine achieves up to 2160kg per hour. For darker roasts, the rate adjusts to 1440kg per hour due to longer dwell times and heat retention requirements. These figures make the TKM-SX 360 suitable for both specialty-grade light roasts and high-volume darker profiles.

Roasting Method & Fuel Options

The TKM-SX 360 employs a hybrid approach to heat application. It utilises conductive heating elements alongside semi-hot air (also described as semi-direct flame) and full hot air systems. This flexibility supports different roast styles and Maillard reaction control. The machine can operate on multiple fuel sources: (propane gas cylinders), natural gas, or diesel—offering adaptability for different facility setups and regional fuel availability.

Electrical & Physical Specifications

Powering the machine requires a flexible electrical setup. It accepts 110V, 220V, or 380V inputs, with compatibility for both single-phase and three-phase current at 50–60Hz. Total power consumption is 15 kilowatts. Seven motors drive internal functions. The unit measures 412cm in length, 352cm in width, and 621cm in height, with a total weight of 4500kg. It is available in black, red, or custom colours, with exterior finishes including chrome plating, brass, and copper options.

Frequently Asked Questions

What is the batch size of the Toper TKM-SX 360 Gas roaster?

The Toper TKM-SX 360 Gas roaster roasts a single batch of 360kg of green coffee beans. This large capacity is designed for high-output commercial roasting environments that require significant throughput without frequent reloading.

How long does it take to roast coffee in the TKM-SX 360?

Light roasts typically take around 10 minutes, while dark roasts require approximately 15 minutes in the TKM-SX 360. The exact time may vary based on desired roast profile and bean characteristics.

What is the production capacity of the TKM-SX 360 per hour?

The roaster can produce up to 2160kg of roasted coffee per hour for light roasts and 1440kg per hour for dark roasts. These rates reflect the differences in roast time and thermal retention between light and dark profiles.

What types of fuel can the Toper TKM-SX 360 use?

The TKM-SX 360 is compatible with (propane gas), natural gas, and diesel. This fuel flexibility allows it to be installed in various facilities with different energy infrastructures.

Does the TKM-SX 360 support different roasting methods?

Yes, the TKM-SX 360 uses a combination of conductive heating, semi-hot air (semi-direct flame), and full hot air systems. This hybrid approach provides control over the roast environment and supports various Maillard reaction phases.

What are the electrical requirements for the Toper TKM-SX 360?

The machine accepts 110V, 220V, or 380V power inputs, and works with both single-phase and three-phase electricity at 50–60Hz. Total power consumption is 15 kilowatts.
