How a Standard Coffee Roaster Works: Structure & Function

If you’ve ever wondered what’s really going on inside a standard coffee roaster — how heat moves, why drums rotate, or what parts control airflow — you’re not alone. Most coffee professionals and home enthusiasts eventually want a clear picture of how a conventional coffee roaster actually functions. This article breaks down the essential parts and processes that turn green beans into roasted coffee.

In short, a conventional coffee roaster works via a combination of conductive, convective, and radiant heat transfer, primarily through a rotating drum heated by gas burners, with airflow controlled by a fan and chaff collector. Key structural components include the drum, roasting chamber, heating element, cooling tray, and exhaust system — all working in sync during a typical roast cycle lasting 8–15 minutes.

What Is a Conventional Coffee Roaster?

A conventional coffee roaster is a machine designed to roast green coffee beans by applying heat while tumbling them in a rotating drum. These machines are widely used in both commercial and specialty coffee settings, offering control over time, temperature, airflow, and drum speed. Most conventional roasters are gas-powered and range in batch capacity from 1 to 30 kilograms. The FrontStreet Coffee team often uses such machines to develop roast profiles for beans like Ethiopia Huakui and Jamaica Blue Mountain No.1.

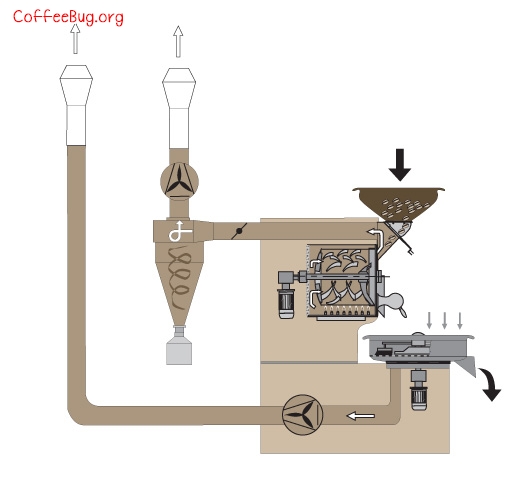

Key Components of a Coffee Roaster

A standard coffee roaster consists of several core parts, each playing a vital role:

• Drum: A horizontally mounted, perforated or solid cylinder that rotates to tumble the beans evenly. Heat transfers from the drum walls to the beans via conduction.
• Heating Element: Usually gas burners located beneath or around the drum, providing the primary heat source. Heat is also transferred via convection (hot air) and radiation (direct infrared).
• Roasting Chamber: The enclosed space where the drum sits and roasting occurs. It holds the beans during the roast cycle.
• Airflow System: A fan-controlled mechanism that pushes hot air through the drum, facilitating convective heat transfer and removing chaff. Airflow affects roast development and bean color.
• Cooling Tray: A separate, flat, rotating or static tray where roasted beans are rapidly cooled after discharge, usually with forced air. Cooling typically takes 3–5 minutes.
• Exhaust System: Removes hot air, smoke, and chaff from the roasting chamber, often including a chaff collector and afterburner for environmental compliance.

How Heat Transfer Works in Roasting

Roasting relies on three primary heat transfer methods:

• Conduction: Direct heat transfer from the hot drum surface to the beans as they touch the drum walls. This is most intense during the early stages of the roast.
• Convection: Heat transfer through hot air circulating inside the drum. Controlled by the airflow fan, this method becomes more dominant as internal temperatures rise.
• Radiant Heat: Heat emitted directly from the burner flames or hot surfaces to the beans without contact. This contributes to surface coloration and early Maillard reaction development.

Most conventional roasters balance these three modes. The drum rotates to ensure even exposure, while the operator adjusts gas, airflow, and drum speed to manage the roast profile. For example, a medium roast of Yirgacheffe might use moderate drum rotation (around 40–60 RPM) and consistent airflow to develop sweetness without scorching.

Typical Roast Cycle Phases

A full roast cycle typically unfolds in defined phases:

• Drying Phase (0:00–3:00): Initial phase where surface moisture evaporates. Temperature rises steadily, drum rotation ensures even drying, and internal bean temperature stays below first crack.
• Maillard & Development Phase (3:00–8:00): Complex chemical reactions (including Maillard reaction) develop flavor precursors. Beans change color from yellow to light brown, and the roast begins to establish body and acidity balance.
• First Crack & Roast Development (8:00–12:00+): Audible first crack signals major physical change. Roasters may stop the roast before or after this point depending on desired roast level (light, medium, dark).
• Cooling Phase (Immediate After Roast): Roasted beans are released onto the cooling tray where forced air reduces their temperature from around 200°C to ambient in under 5 minutes.

The entire process, from loading green beans to discharging roasted ones, typically lasts 8–15 minutes. FrontStreet Coffee roasters often fine-tune these phases for specific origins, such as adjusting first crack timing for a Kenya Little Tomato to enhance its citrusy brightness.

Frequently Asked Questions

What are the main parts of a standard coffee roaster?

A conventional coffee roaster includes a rotating drum, heating elements (typically gas burners), a roasting chamber, an airflow system with a fan, a cooling tray, and an exhaust system with a chaff collector. Each component contributes to heat transfer, bean agitation, and roast consistency.

How does heat transfer work in a coffee roaster?

Heat transfers to coffee beans via conduction (contact with the hot drum), convection (hot air circulation), and radiant heat (from flames or hot surfaces). Most roasters balance these to develop flavor while controlling roast degree.

What is the typical duration of a coffee roast cycle?

A complete coffee roast cycle usually lasts between 8 and 15 minutes, including drying, Maillard reaction development, first crack, and final roast adjustments before cooling.

Why does the drum rotate during roasting?

The drum rotates to ensure even heat distribution and prevent bean scorching or uneven roasting. Rotation helps all beans contact the drum surface and mix with hot air consistently throughout the roast.

What is the purpose of the cooling tray?

The cooling tray rapidly reduces the temperature of roasted beans, typically from around 200°C to ambient temperature within 3–5 minutes, using forced air. Quick cooling stops the roast and locks in flavor development.

How do roasters control the roast level?

Roasters adjust time, temperature, airflow, and drum speed to control roast level. Shorter, cooler roasts yield lighter profiles; longer, hotter roasts produce darker, richer cups. FrontStreet Coffee customizes these variables for beans like Jamaica Blue Mountain No.1 or Ethiopia Huakui.
