Giesen W6 A Coffee Roaster: Specs and Setup Guide

If you’re setting up a new roastery or upgrading your existing setup, you need a machine that balances capacity, ease of use, and performance—without taking up a whole room. Many roasters look for a 6 kg-capable batch roaster that still fits neatly into a mid-sized shop, can handle high daily throughput, and offers precise control without a steep learning curve. That’s where the Giesen W6 A enters the picture.

The Giesen W6 A is a 6 kg-capacity coffee roaster designed for professional use in both roasteries and café settings. It delivers up to 24 kg of roasted and cooled coffee per hour when using its dual-fan system, making it a solid starting point for serious production.

What Is the Giesen W6 A Coffee Roaster?

The Giesen W6 A is a drum coffee roaster built entirely in the Netherlands. It is designed for commercial use and is especially suited to roasteries or cafés where visibility and production meet. With a per-batch capacity of 500 to 6000 grams (6 kg max), it provides a solid foundation for specialty roasting while maintaining a compact footprint suitable for medium to large spaces.

Where Should You Place the Giesen W6 A?

Although the Giesen W6 A can be installed in a rear roasting area, its sleek design makes it an attractive option to position near the customer area. The machine measures 1.34 x 0.72 x 1.74 meters, which is compact enough for a mid- to large-sized shop. The cooling tray air outlet can be rotated from front-facing to side-facing, giving you layout flexibility. Its visual appeal also makes it a strong choice for showcasing the roasting process.

How Much Coffee Can the Giesen W6 A Roast?

The Giesen W6 A handles batches between 500 and 6000 grams, with 6 kg (6000 g) being the maximum recommended capacity per batch. This makes it suitable for small-batch specialty work as well as higher-volume production cycles. When paired with its simultaneous roast and cooling functionality, the machine achieves an output of up to 24 kg per hour.

How Is the Giesen W6 A Controlled?

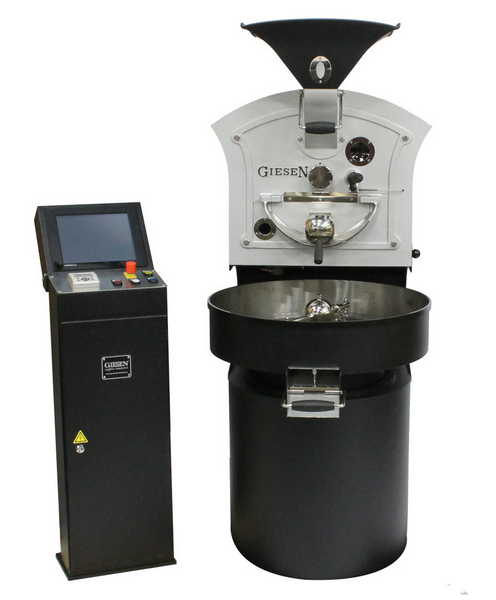

The roaster offers two control methods. The default is manual control via the physical control panel. For more advanced operation, an optional Roast Profile System runs on an external laptop or touchscreen. This software allows you to program, save, and replay roast profiles, capturing variables for consistency across batches. It brings semi-automatic precision to your roast workflow.

How Do You Clean and Maintain the Giesen W6 A?

Maintenance is straightforward. The Giesen W6 A includes accessible drawers and doors that allow easy vacuuming of chaff. The cooling tray is attached with just two screws on either side, so it can be fully removed for cleaning underneath. These design elements make routine cleaning faster and help ensure reliable long-term operation.

Key Features and Technical Specifications

The Giesen W6 A includes the following features and specs:

• Roaster Capacity: 500 – 6000 grams
• Amperage: 16A
• Exhaust Diameter: Single 150 mm (Ø150 mm) pipe for both roast and cooling air
• Fuel Options: Propane, Butane, or Natural Gas
• Electrical Supply: 1 phase, 230V, 50-60 Hz
• Roaster Weight: 450 kg
• Simultaneous Roasting and Cooling: Yes, enabled by separate drum and cooling tray fans
• Airflow Control: Adjustable
• Flame Adjustment: Automatic
• Energy Efficiency: Designed for efficient operation
• Cleaning & Maintenance: Easy access for chaff removal and cooling tray detachment
• Destoner: Button on control unit, optional destoner unit available
• Roast Profile System: Optional, includes laptop for profile recording and playback
• Certification: Fully CE tested
• Manufacturing Origin: Completely built in the Netherlands

Frequently Asked Questions

What is the batch capacity of the Giesen W6 A coffee roaster?

The Giesen W6 A can roast between 500 and 6000 grams per batch, with 6 kg (6000 g) as the maximum recommended batch size.

Does the Giesen W6 A allow simultaneous roasting and cooling?

Yes, the Giesen W6 A has separate fans for the drum and the cooling tray, enabling it to roast and cool at the same time, achieving up to 24 kg of output per hour.

How large is the Giesen W6 A and where can it be placed?

The roaster measures 1.34 x 0.72 x 1.74 meters, making it compact enough for medium to large shops. It can be placed in the back or near the customer area, with the cooling tray outlet adjustable from front to side.

How is the Giesen W6 A controlled?

The roaster can be operated manually via the control panel or semi-automatically using the optional Roast Profile System on an external laptop or touchscreen, which saves and replays roast profiles.

Is the Giesen W6 A easy to clean?

Yes, it features accessible drawers for chaff removal and a cooling tray that is fixed with only two screws for quick detachment and cleaning.

What fuel types can the Giesen W6 A use?

The Giesen W6 A is compatible with propane, butane, or natural gas.
